python+selenium grid配置与运行

发表于 更新于 分类于 阅读次数： Valine：

说明

本次主要介绍本地搭建一套selenium grid的环境

环境准备

  • java安装，以及环境配置
  • python 3.4环境
  • selenium安装 pip install selenium
  • Chromedriver 要和本地的chrome浏览器匹配,点击下载
  • 下载selenium-server-standalone点击下载
  • 准备2台pc，如果是虚拟机，选择桥接，2台pc互相能ping通,本次测试为本机

开始部署

  • 启动hub
1
java -jar selenium-server-standalone-v3.0.1.jar -role hub -port 4455

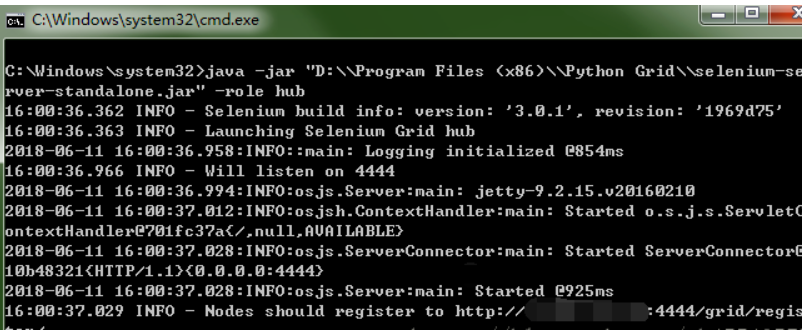

image-20220325184855366

  • 启动node
1
2
3
java -jar selenium-server-standalone-v3.0.1.jar -role node -port 5555 -hub http://192.168.0.102:4444/grid/registe

java -jar selenium-server-standalone-v3.0.1.jar -role node -port 6666 -hub http://192.168.0.102:4444/grid/registe

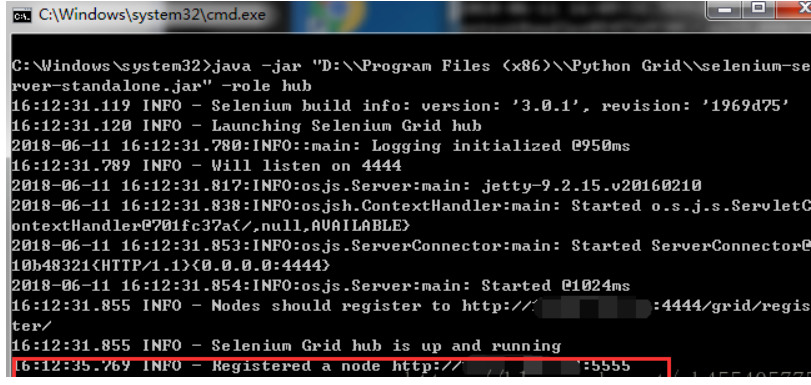

image-20220325184910875

  • 其他node启动方式
1
2
java -Dwebdriver.ie.driver=D:\IEDriverServer.exe -jar selenium-server-standalone-2.37.0.jar -role node -hub [http://127.0.0.1:4444/grid/register](http://127.0.0.1:4444/grid/register) -maxSession 20 -browser "browserName=internet explorer,version=9,platform=WINDOWS,maxInstances=20" -port 5555

node是只运行IE，并且并发数是20，最多有20个IE浏览器在运行

查看grid信息

浏览器打开：http://hub_ip:4444/grid/console 可以查看hub信息，和已经连上的node信息

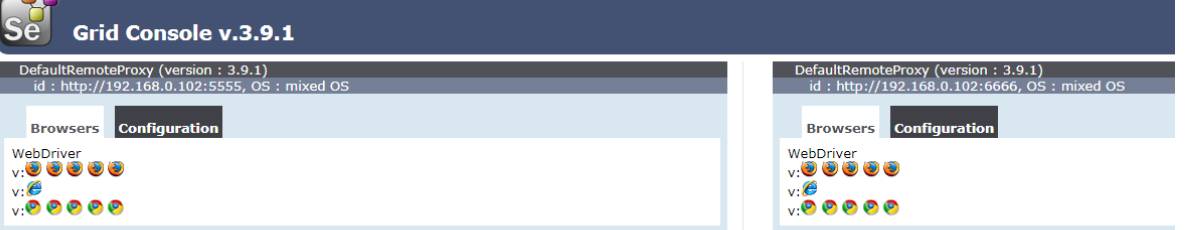

image-20220325184938186

运行

  • 封装的unittest, BaseRunner .py
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
import unittest
from selenium import webdriver
import os

PATH = lambda p: os.path.abspath(
    os.path.join(os.path.dirname(__file__), p)
)


def get_driver(device):
    chromedriver = PATH("../exe/chromedriver.exe")
    os.environ["webdriver.chrome.driver"] = chromedriver
    chrome_capabilities = {
        "browserName": "chrome",  # 浏览器名称
        "version": "",  # 操作系统版本
        "platform": "ANY",  # 平台，这里可以是windows、linux、andriod等等
        "javascriptEnabled": True,  # 是否启用js
        "webdriver.chrome.driver": chromedriver
    }
    driver = webdriver.Remote(command_executor=device, desired_capabilities=chrome_capabilities)
    driver.maximize_window()  # 将浏览器最大化
    driver.get("https://www.baidu.com/")
    return driver


class ParametrizedTestCase(unittest.TestCase):
    def __init__(self, methodName='runTest', param=None):
        super(ParametrizedTestCase, self).__init__(methodName)
        global devicess
        devicess = param
    @classmethod
    def setUpClass(cls):
        pass
        cls.driver = get_driver(devicess)
        # cls.logTest = myLog().getLog("chrome")  # 每个设备实例化一个日志记录器

    def setUp(self):
        pass

    @classmethod
    def tearDownClass(cls):
        cls.driver.close()
        cls.driver.quit()
        pass

    def tearDown(self):
        pass

    @staticmethod
    def parametrize(testcase_klass, param=None):
        testloader = unittest.TestLoader()
        testnames = testloader.getTestCaseNames(testcase_klass)
        suite = unittest.TestSuite()
        for name in testnames:
            suite.addTest(testcase_klass(name, param=param))
        return suite
  • 编写测试用例
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
from Base.BaseRunner import ParametrizedTestCase
import os
import time

PATH = lambda p: os.path.abspath(
    os.path.join(os.path.dirname(__file__), p)
)

class HomeTest(ParametrizedTestCase):
    def testSearch(self):
        time.sleep(1)
        self.driver.find_element_by_id("kw").send_keys("selenium")
        time.sleep(2)
        self.driver.find_element_by_id("su").click()
        time.sleep(2)

    @classmethod
    def setUpClass(cls):
        super(HomeTest, cls).setUpClass()

    @classmethod
    def tearDownClass(cls):
        super(HomeTest, cls).tearDownClass()
  • 运行
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    import unittest
    from multiprocessing.pool import Pool
    from Base.BaseRunner import ParametrizedTestCase
    from TestCase import HomeTest


    def runner_pool():
        devices_Pool = ['http://192.168.0.102:5555/wd/hub', 'http://192.168.0.102:6666/wd/hub']
        pool = Pool(len(devices_Pool))
        pool.map(run, devices_Pool)
        pool.close()
        pool.join()

    def run(device):
        suite = unittest.TestSuite()
        suite.addTest(ParametrizedTestCase.parametrize(HomeTest.HomeTest, param=device))
        unittest.TextTestRunner(verbosity=2).run(suite)


    if __name__ == '__main__':
        runner_pool()

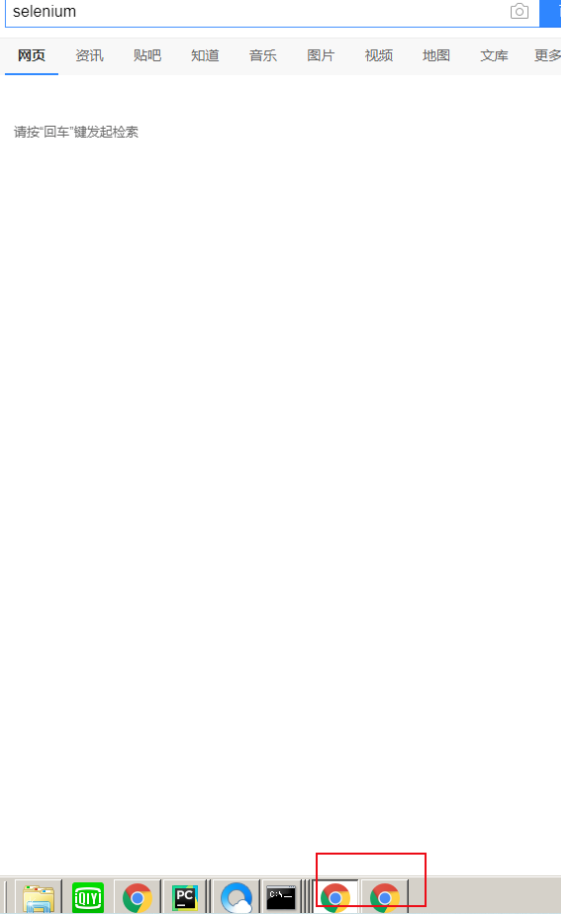

    image-20220325185045483

其他
